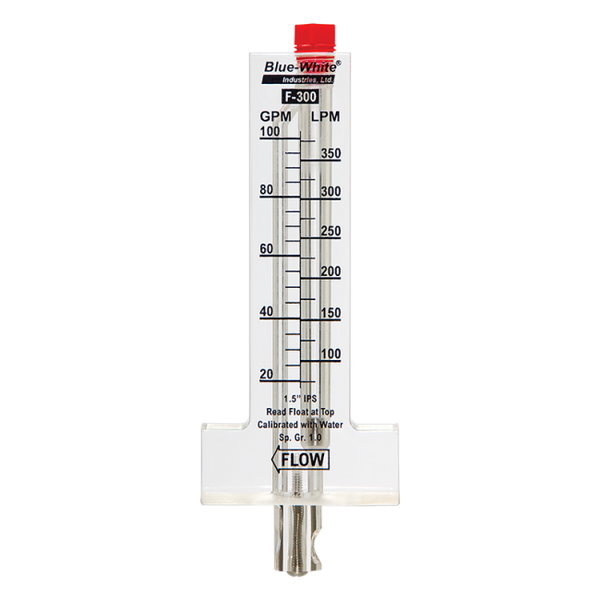

Blue-White Flowmeter

• Well suited for closed pipe installations
• Easy to read dual scale (GPM / LPM), screen printed on both sides of the meter body
• Acceptable for outdoor installations (direct sunlight okay)
• Pitot Tube (impact tube) design makes it easy to install on existing pipe
• One piece, machined acrylic meter body, annealed for added strength and chemical resistance
• Included SS clamps and gasket seal
• Standard and Low Flow options available
• For use on PVC pipes

Horizontal Pipe Installation

Model               Pipe Size       Standard Flow
F-30150P        1 1/2" PVC     20 – 100 GPM / 75 – 375 LPM
F-30-200P       2" PVC           40 – 150 GPM / 150 – 550 LPM
